250kg Flake Ice Machine with 100kg Upright Bin

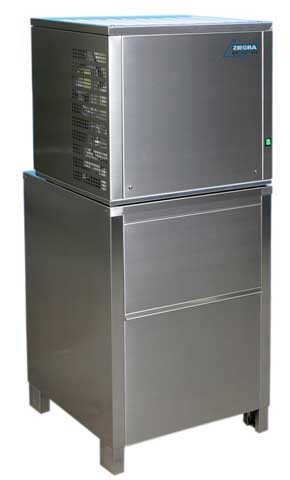

The Ziegra ZBE 250-100 ice machine makes up to 250kg of flake ice in one of two sizes. It sits on a B100 upright ice storage bin, which stores 100kg of ice ready for use. The ice machine has a B type ice discharge / level control, which drops ice into the bin below, stops ice production when the bin is full and automatically restarts once ice is removed.

There are two options to choose from;
ZBE 250-BK150 CoolNat with a natural refrigerant for standard environments and applications.
ZBE 250-BK150 with R452a refrigerant for applications and environments where more flexibility is required.

ZBE 250 main features

Ice level control system included as standard
Granular flake ice made at optimum temperature of -0.5°C.
Two sizes of ice flake available: micro and midi, to suit a wide range of applications.
Hygienic design with a sealed water system
External water filtration system supplied as standard.
Designed for continuous operation 24/7
Stainless steel construction
No moving parts in refrigeration circuit lowers risk of gas leaks
Environmentally friendly natural refrigerant

B100 ice storage features

Stainless steel construction
Stainless lined interior.
Non CFC insulation

Model	ZBE 250-100 CoolNat	ZBE 250-100
250kg / 24h nominal capacity*	at 20°C air and 15°C water
Ice storage capacity	100kg (0.34m^³)
Assembled dimensions (W x D x H)	700 x 700 x 1560 mm
Assembled weight (empty)	145kg
cabinet	Stainless steel 1.4301
Electricity power consumption current consumption	0.8kW 3.6A	1.0kW 4.5A
Provided by customer electric supply fuse, slow-blow cable cross section, Cu	1/N/PE ~ 230V 50Hz 13A 1.5mm²
Water supply / drain provided by customer pressure quality pH value hardness temperature	¾” BSP / 18mm O/D hose (floor drain recommended) 2 – 5 bar drinking water quality 7.2 – 9.5 pH 6 – 14 °dH 100 – 250mg CaCO3/l 5°C – 30°C
Ambient air temperature	5°C – 42°C
Condenser air flow heat emission	Air cooled 800 m³/h 2.0kW	Air cooled 800 m3/h 2.1kW
Refrigerant Refrigerant charge ODP GWP Tonnes CO² equivalent	R290 0.112kg 0 3 0.000336	R452a 1.0kg 0 2,140 2.14
Compressor refrigeration capacity evaporation temperature condensation temperature	Fully hermetic 1.2kW -14°C 33°C	Fully hermetic 1.15kW -16°C 33°C
Noise level	51dBA (3m)
Ice discharge	B type
Shipping dimensions (W x D x H)	(0.76 x 0.66 x 0.79m) + (0.76 x 0.76 x 1.0m)
Shipping weight	(95kg) + (75kg)
*according to site conditions. Air temperature, water temperature, water chemistry, air contamination and installation parameters can all effect ice output. All product, product specifications and data are subject to change without notice

A: Ice machine
B: Ice storage bin
C: Water connection: ¾ BSP
D: Electrical connection / plug: 1/N/PE ~ 230V 50Hz / Standard UK 3 pin
E: Drain: ø 14mm
F: Floor drain (by customer)

The ZBE 250-100 ice machine will be delivered according to CE standards and ready for connection to water power and drain.

Includes as standard:

High pressure pressostat
Water supply control
Motor protection for the compressor
B type ice discharge
Ice level control by mechanical switch
1 x connecting cable 3.5m
1 x Flexible 2 metre water supply hose
1 x flexible 2 metre drain hose
1 x PE ice scoop
1 x Ziegra Single water filtration kit

Configuration Options

Castor mounting The bin mounted on castors so the machine can be moved for cleaning. Supplied pre-fitted.

Drain Pump Pumps the drain water into the site drain if it is too high or far away for gravity drainage. Supplied with a 2 metre flex, it can be directly wired into a fused spur or a plug fitted (not supplied) and plugged into a standard 3 pin socket. Mount on the floor underneath the machine. Not suitable for dusty environments.

Condenser options Water cooled instead of air-cooled: where air-cooling is not possible.Useful in applications where the machine must be installed into an area with poor ventilation where a remote aircooled condenser is not possible. Requires change to R452a Water connections: 1/2″ Male Water flow: 110 l/h Heat emission: 1.3kW Remote condenser option: The condenser supplied separately to the machine for remote mounting, typically outside, when the machine is to be located in areas that poorly ventilated or have airbourne contamination such as flour dust. Available as standard for indoor mounting, weatherproof for outside mounting and cu/cu saltwater resistant for mounting in areas close to the sea. Requires change to R452a *Low noise condenser:* Only for remote installation. Use when the condenser will be going in an area sensitive to noise, such as residential.

Frostguard: The machine equipped to deal with intermittent temperatures below 5°C, only available in conjunction with remote condenser or water cooled option above.

Additional Hygiene Options

Hygiene +: Auto water drain The water tank automatically drains when the machine is switched off, preventing water stagnation during periods of infrequent use.

Hygiene +: UV sterilization sterilization of the incoming water supply by mean of UV filter, all incoming water is passed through a powerful UV field on its way into the machine which kill almost all biohazards in the water supply. Slows down proliferation of water-borne bacteria inside the machine during operation.

Sanitiser solution: 5litre tub part # ZUK9700044 Ziegra ice machine sanitiser is an anti-bacterial product designed for both regular preventative use and intensive cleaning operations.

Spare filter cartridge: #ZUK9700040 Standard replacement cartridge for the Ziegra single kit, requires change every 6 months.
Ancillary Items

7 day timer Allows programming of the machine to make ice at specific times of the day or night.

Smartcart 240 80kg capacity insulated ice cart, moulded from food safe polymer for maximum hygiene. With removeable lid. Ideal when the ice machine and bin must be located away from the point where the ice will be used.
